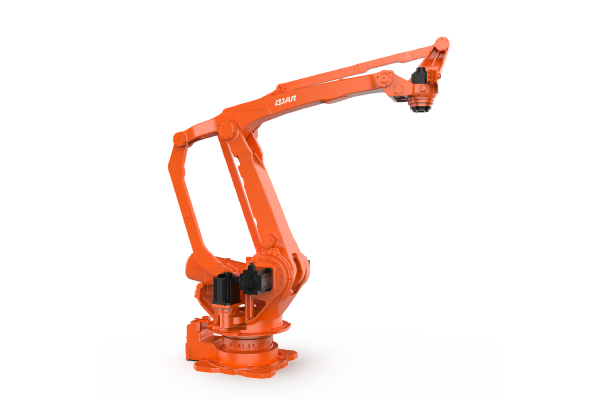

180kg Payload 3153mm Reaching Distance Robotic Arm QJRB180-1
QJRB180-1
- High-speed and stable, all axis operating at low power output simple equipment composition can be used with special palletizing software.
- Widely used in intelligent manufacturing industry such as furniture, food and beverage and 3C, applicable to high-speed and high-precision palletizing, picking, packaging, handling, feeding and unloading.
- Repeat positioning accuracy: ±0.5mm
- Armspan: 3153mm
- Payload: 180kg
Technical Parameters
| Model | QJRB180-1 | |
| Axis Number | 4 | |
| Payload | 180kg | |
| Repeat Positioning | ±0.5mm | |
| Max Armspan | 3153.7mm | |
| Motion Range | J1 | ±170º |
| J2 | ﹢95º,﹣47º | |
| J3 | ﹢112º,﹣20º | |
| J4 | ±360º | |
| J5 | — | |
| J6 | — | |
| Max Speed | J1 | 129º/s |
| J2 | 132º/s | |
| J3 | 132º/s | |
| J4 | 298º/s | |
| J5 | — | |
| J6 | — | |
| Allowable Torque | J4 | — |
| J5 | — | |
| J6 | — | |
| Inertia Moment | J4 | 3.25kg.m² |
| J5 | — | |
| J6 | — | |
| Robot Body Weight | 1400kg | |
| Power Capacity | 17.5kVA | |
| Cabinet Size | 650*750*1150mm | |
| Cabinet Weight | 140kg | |
| Source | Three-phase five-wire | |
| Installing Form | Ground | |
| Application | It is suitable for punching machine, furniture, food and beverage, 3C and other industries. On Palletizing, picking up, packaging, handling, loading and unloading. | |
Robot Overall Dimension and Motion Range Drawing
Robot Base Mounting Dimension Drawing
Robot End Installation Dimension Drawing
