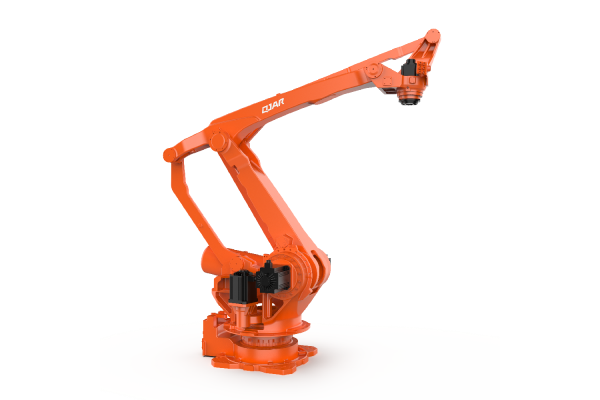

QJR130-3100M

  • High-speed and stable, all axis operating at low power output simple equipment composition can be used with special palletizing software.
  • Widely used in intelligent manufacturing industry such as furniture, food and beverage and 3C, applicable to high-speed and high-precision palletizing, picking, packaging, handling, feeding and unloading.
  • Repeat positioning accuracy: ±0.5mm
  • Armspan: 3157mm
  • Payload: 130kg

Technical Parameters

Model QJR130-3100M
Axis Number 4
Payload 130kg
Repeat Positioning ±0.5mm
Max Armspan 3157mm
Motion Range J1 ±182°
J2 +97°, -50°
J3 +122°, -22°
J4 ±360º
Max Speed J1 129 °/s
J2 132 °/s
J3 132 °/s
J4 299 °/s
Max Acceleration J1 126 °/s2
J2 401 °/s2
J3 458 °/s2
J4 2291 °/s2
Inertia Moment J4 23kg.m²
Robot Body Weight 1400kg
Power Capacity 17.5kVA
Cabinet Size 650x750x1150mm
Cabinet Weight 140kg
Source 3 Phase 5 Wire
AC380V(+10%,-10%)
Installing Form Ground
Application Palletizing, handling, loading, picking up, packaging,etc.

Robot Overall Dimension and Motion Range Drawing

Robotic Arm QJR130-3100M Overall Dimension

Robot Base Mounting Dimension Drawing

Robotic Arm QJR130-3100M Mounting Dimension Drawing

Robot End Installation Dimension Drawing

Robotic Arm QJR130-3100M Installation Interface Diagram
